Versioning RESTful Services


This guide will help you understand why versioning is needed and how you can version your REST API. We will look at 4 ways of versioning and also compare the different approaches.

You will learn

  • Why do we need Versioning for RESTful Web Services?
  • What are the versioning options that are available?
  • How do you implement Versioning for RESTful Web Services?

10 Step Reference Courses

Project Code Structure

Following screenshot shows the structure of the project we will create. Image

A few details:

  • SpringBoot2RestServiceApplication.java - The Spring Boot Application class generated with Spring Initializer. This class acts as the launching point for application.
  • pom.xml - Contains all the dependencies needed to build this project. We will use Spring Boot Starter AOP.
  • StudentV1.java - Basic Version of the Student Bean.
  • StudentV2.java - Advanced Version of the Student Bean using a seperate bean for Name.
  • Name.java - Seperate bean for Name having different parts of the Name.
  • StudentVersioningController.java - Controller from where all the service versions are exposed.

Tools you will need

  • Maven 3.0+ is your build tool
  • Your favorite IDE. We use Eclipse.
  • JDK 1.8+

Complete Maven Project With Code Examples

Our Github repository has all the code examples - https://github.com/in28minutes/spring-boot-examples/tree/master/spring-boot-2-rest-service-versioning

Why do we need to version our RESTful API?

The best approach to versioning is NOT to do it. Yeah, that’s right. Do not version as long as versioning is not needed.

Build your services to backward compatible so that you can avoid versioning as much as possible!

However there are a number of situations where versioning is needed.

Let’s consider an example.

You had this version of the student service initially

{
  "name": "Bob Charlie"
}

At a later point, you wanted to split the name up. So, you created this version of the service.

{
  "name": {
    "firstName": "Bob",
    "lastName": "Charlie"
  }
}

You can support both these requests from the same service, but it becomes complex as the requirements diversify for each of the versions.

In these kind of situations, versioning becomes mandatory.

Let’s create a simple project and understand the 4 different approaches to versioning your RESTful services.

Bootstrapping with Spring Initializr

Creating a REST service with Spring Initializr is a cake walk. We will use Spring Web MVC as our web framework.

Spring Initializr http://start.spring.io/ is great tool to bootstrap your Spring Boot projects.



As shown in the image above, following steps have to be done

  • Launch Spring Initializr and choose the following
    • Choose com.in28minutes.springboot.rest.example as Group
    • Choose spring-boot-2-rest-service-basic as Artifact
    • Choose following dependencies
      • Web
      • DevTools
  • Click Generate Project.
  • Import the project into Eclipse. File -> Import -> Existing Maven Project.

Implementing Beans for Versioning

First version of Bean

public class StudentV1 {
  private String name;

Second Version of Bean

public class StudentV2 {
  private Name name;

Name has firstName and lastName and is used by StudentV2

public class Name {
  private String firstName;
  private String lastName;

Versioning Approaches for RESTful Services

We would want to create two versions of services, one returning StudentV1 and the other returning StudentV2.

Let’s look at the 4 Different Approaches for creating versions of the same service.

URI Versioning

Basic approach to versioning is to create a completely different URI for the new service. Example implementation is shown below.

Examples

  • http://localhost:8080/v1/person
  • http://localhost:8080/v2/person
@RestController
public class StudentVersioningController {

  @GetMapping("v1/student")
  public StudentV1 studentV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping("v2/student")
  public StudentV2 studentV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

http://localhost:8080/v1/person

Response

{
  "name": "Bob Charlie"
}

http://localhost:8080/v2/person

Response

{
  "name": {
    "firstName": "Bob",
    "lastName": "Charlie"
  }
}

Request Parameter versioning

Next approach to versioning is to use the request parameter to differentiate versions.

Examples

  • http://localhost:8080/person/param?version=1
  • http://localhost:8080/person/param?version=2

Implementations are shown below:

  @GetMapping(value = "/student/param", params = "version=1")
  public StudentV1 paramV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping(value = "/student/param", params = "version=2")
  public StudentV2 paramV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

http://localhost:8080/person/param?version=1

Response

{
  "name": "Bob Charlie"
}

http://localhost:8080/person/param?version=2 Response

{
  "name": {
    "firstName": "Bob",
    "lastName": "Charlie"
  }
}

(Custom) Headers versioning

The third approach to versioning is to use a Request Header to differentiate the versions.

Examples

  • http://localhost:8080/person/header
    • headers=[X-API-VERSION=1]
  • http://localhost:8080/person/header
    • headers=[X-API-VERSION=2]

Implementations are shown below:

  @GetMapping(value = "/student/header", headers = "X-API-VERSION=1")
  public StudentV1 headerV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping(value = "/student/header", headers = "X-API-VERSION=2")
  public StudentV2 headerV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

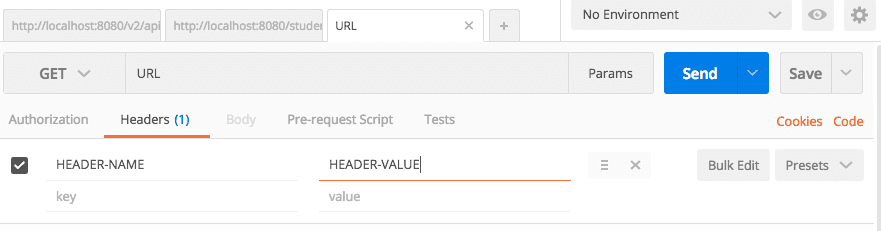

Below picture shows how we can execute a Get Request Method with Request Headers using Postman. Image

http://localhost:8080/person/header with a header

  • X-API-VERSION=1

Response

{
  "name": "Bob Charlie"
}

http://localhost:8080/person/header with a header

  • X-API-VERSION=2

Response

{
  "name": {
    "firstName": "Bob",
    "lastName": "Charlie"
  }
}

Media type versioning (a.k.a “content negotiation” or “accept header”)

The last versioning approach is to use the Accept Header in the request.

Examples

  • http://localhost:8080/person/produces
    • headers[Accept=application/vnd.company.app-v1+json]
  • http://localhost:8080/person/produces
    • headers[Accept=application/vnd.company.app-v2+json]
  @GetMapping(value = "/student/produces", produces = "application/vnd.company.app-v1+json")
  public StudentV1 producesV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping(value = "/student/produces", produces = "application/vnd.company.app-v2+json")
  public StudentV2 producesV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

Below picture shows how we can execute a Get Request Method with Request Headers using Postman. Image

http://localhost:8080/person/produces with a header

  • Accept=application/vnd.company.app-v1+json Response
    {
    "name": "Bob Charlie"
    }


http://localhost:8080/person/produces with a header

  • Accept=application/vnd.company.app-v2+json

Response

{
  "name": {
    "firstName": "Bob",
    "lastName": "Charlie"
  }
}

Factors affecting Versioning Choice

Following factors affect the choice of versioning:

  • URI Pollution - URL versions and Request Param versioning pollute the URI space.
  • Misuse of HTTP Headers - Accept Header is not designed to be used for versioning.
  • Caching - If you use Header based versioning, we cannot cache just based on the URL. You would need take the specific header into consideration.
  • Can we execute the request on the browser? - If you have non technical consumers, then the URL based version would be easier to use as they can be executed directly on the browser.
  • API Documentation - How do you get your documentation generation to understand that two different urls are versions of the same service?

The fact is that there is No Perfect Solution for versioning.

The list below shows Major API providers using different versioning approaches.

  • Media type versioning (a.k.a “content negotiation” or “accept header”)
    • GitHub
  • (Custom) Headers versioning
    • Microsoft
  • URI Versioning
    • Twitter
  • Request Parameter versioning
    • Amazon

Plan to avoid versioning as far as possible but evaluate and be ready with a versioing strategy before you expose your first service to your consumer. Good Luck!

More Reading

  • https://www.mnot.net/blog/2011/10/25/web_api_versioning_smackdown
  • http://urthen.github.io/2013/05/09/ways-to-version-your-api/
  • http://stackoverflow.com/questions/389169/best-practices-for-api-versioning
  • http://www.lexicalscope.com/blog/2012/03/12/how-are-rest-apis-versioned/
  • https://www.3scale.net/2016/06/api-versioning-methods-a-brief-reference/

Complete Code Example

/pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.in28minutes.springboot.rest.example</groupId>
  <artifactId>spring-boot-2-rest-service-versioning</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>spring-boot-2-rest-service</name>
  <description>Spring Boot 2 and REST - Example Project</description>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.0.M6</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-devtools</artifactId>
      <scope>runtime</scope>
    </dependency>
    <dependency>
      <groupId>com.h2database</groupId>
      <artifactId>h2</artifactId>
      <scope>runtime</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

  <repositories>
    <repository>
      <id>spring-snapshots</id>
      <name>Spring Snapshots</name>
      <url>https://repo.spring.io/snapshot</url>
      <snapshots>
        <enabled>true</enabled>
      </snapshots>
    </repository>
    <repository>
      <id>spring-milestones</id>
      <name>Spring Milestones</name>
      <url>https://repo.spring.io/milestone</url>
      <snapshots>
        <enabled>false</enabled>
      </snapshots>
    </repository>
  </repositories>

  <pluginRepositories>
    <pluginRepository>
      <id>spring-snapshots</id>
      <name>Spring Snapshots</name>
      <url>https://repo.spring.io/snapshot</url>
      <snapshots>
        <enabled>true</enabled>
      </snapshots>
    </pluginRepository>
    <pluginRepository>
      <id>spring-milestones</id>
      <name>Spring Milestones</name>
      <url>https://repo.spring.io/milestone</url>
      <snapshots>
        <enabled>false</enabled>
      </snapshots>
    </pluginRepository>
  </pluginRepositories>


</project>

/src/main/java/com/in28minutes/springboot/rest/example/SpringBoot2RestServiceApplication.java

package com.in28minutes.springboot.rest.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBoot2RestServiceApplication {

  public static void main(String[] args) {
    SpringApplication.run(SpringBoot2RestServiceApplication.class, args);
  }
}

/src/main/java/com/in28minutes/springboot/rest/example/versioning/Name.java

package com.in28minutes.springboot.rest.example.versioning;
public class Name {
  private String firstName;
  private String lastName;

  public Name() {
  }

  public Name(String firstName, String lastName) {
    super();
    this.firstName = firstName;
    this.lastName = lastName;
  }

  public String getFirstName() {
    return firstName;
  }

  public void setFirstName(String firstName) {
    this.firstName = firstName;
  }

  public String getLastName() {
    return lastName;
  }

  public void setLastName(String lastName) {
    this.lastName = lastName;
  }

}

/src/main/java/com/in28minutes/springboot/rest/example/versioning/StudentV1.java

package com.in28minutes.springboot.rest.example.versioning;
public class StudentV1 {
  private String name;

  public StudentV1() {
    super();
  }

  public StudentV1(String name) {
    super();
    this.name = name;
  }

  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }


}

/src/main/java/com/in28minutes/springboot/rest/example/versioning/StudentV2.java

package com.in28minutes.springboot.rest.example.versioning;
public class StudentV2 {
  private Name name;

  public StudentV2() {
    super();
  }

  public StudentV2(Name name) {
    super();
    this.name = name;
  }

  public Name getName() {
    return name;
  }

  public void setName(Name name) {
    this.name = name;
  }

}

/src/main/java/com/in28minutes/springboot/rest/example/versioning/StudentVersioningController.java

package com.in28minutes.springboot.rest.example.versioning;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class StudentVersioningController {

  @GetMapping("v1/student")
  public StudentV1 studentV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping("v2/student")
  public StudentV2 studentV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

  @GetMapping(value = "/student/param", params = "version=1")
  public StudentV1 paramV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping(value = "/student/param", params = "version=2")
  public StudentV2 paramV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

  @GetMapping(value = "/student/header", headers = "X-API-VERSION=1")
  public StudentV1 headerV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping(value = "/student/header", headers = "X-API-VERSION=2")
  public StudentV2 headerV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

  @GetMapping(value = "/student/produces", produces = "application/vnd.company.app-v1+json")
  public StudentV1 producesV1() {
    return new StudentV1("Bob Charlie");
  }

  @GetMapping(value = "/student/produces", produces = "application/vnd.company.app-v2+json")
  public StudentV2 producesV2() {
    return new StudentV2(new Name("Bob", "Charlie"));
  }

}

/src/main/resources/application.properties


/src/test/java/com/in28minutes/springboot/rest/example/SpringBoot2RestServiceApplicationTests.java

package com.in28minutes.springboot.rest.example;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@RunWith(SpringRunner.class)
@SpringBootTest
public class SpringBoot2RestServiceApplicationTests {

  @Test
  public void contextLoads() {
  }

}

Subscribe to get amazing offers on all our courses.

Find out how in28Minutes reached 100,000 Learners on Udemy in 2 years. The in28minutes Way - Our approach to creating awesome learning experiences.

Related Posts

Spring Boot Tutorials for Beginners

At in28Minutes, we are creating a number of tutorials with videos, articles & courses on Spring Boot for Beginners and Experienced Developers. This resources will help you learn and gain expertise at Spring Boot.

20+ Spring Boot Projects with Code Examples

At in28Minutes, we have created more than 20 projects with code examples on Github. We have 50+ articles explaining these projects. These code examples will you learn and gain expertise at Spring Boot.

Microservices with Spring Boot - Part 5 - Using Eureka Naming Server

Let's learn the basics of microservices and microservices architectures. We will also start looking at a basic implementation of a microservice with Spring Boot. We will create a couple of microservices and get them to talk to each other using Eureka Naming Server and Ribbon for Client Side Load Balancing. In part 5 of this series, we will focus on enabling Eureka Naming Server and have the microservices communicate with it.

Microservices with Spring Boot - Part 4 - Using Ribbon for Load Balancing

Let's learn the basics of microservices and microservices architectures. We will also start looking at a basic implementation of a microservice with Spring Boot. We will create a couple of microservices and get them to talk to each other using Eureka Naming Server and Ribbon for Client Side Load Balancing. In part 4 of this series, we will focus on using Ribbon to do Load Balancing.

Microservices with Spring Boot - Part 3 - Creating Currency Conversion Microservice

Let's learn the basics of microservices and microservices architectures. We will also start looking at a basic implementation of a microservice with Spring Boot. We will create a couple of microservices and get them to talk to each other using Eureka Naming Server and Ribbon for Client Side Load Balancing. In part 3 of this series, we will focus on Creating Currency Conversion Microservice.

Microservices with Spring Boot - Part 2 - Creating Forex Microservice

Let's learn the basics of microservices and microservices architectures. We will also start looking at a basic implementation of a microservice with Spring Boot. We will create a couple of microservices and get them to talk to each other using Eureka Naming Server and Ribbon for Client Side Load Balancing. In part 2 of this series, we will focus on Creating Forex Microservice.

Microservices with Spring Boot - Part 1 - Getting Started

Let's learn the basics of microservices and microservices architectures. We will also start looking at a basic implementation of a microservice with Spring Boot. We will create a couple of microservices and get them to talk to each other using Eureka Naming Server and Ribbon for Client Side Load Balancing. In part 1 of this series, lets get introduced to the concept of microservices and understand how to create great microservices with Spring Boot and Spring Cloud.

Getting Started with Spring Boot - 7 things a beginner should know!

Spring Boot is a tricky framework to understand. In this tutorial for beginnners with Spring Boot, we will look at the basics of Spring Boot and help you understand the important concepts - Architecture, Starter Projects, Auto Configuration and Starter Parent. We will look at the architecture of Spring Boot and explore a variety of resources - tutorials, courses and videos - we created to help you get started with Spring Boot effectively.

Spring Boot REST API Projects with Code Examples

At in28Minutes, we have created 8 Spring Boot REST API projects with code examples on Github. We have 10+ tutorial articles explaining these projects. These code examples will help beginners and experts to learn and gain expertise at developing RESTful Services with Spring Boot.

Creating a SOAP Web Service with Spring Boot Starter Web Services

Let's learn how to create a SOAP Web Service with Spring Boot Starter Web Services. We will take a Contract First approach by definining an XSD and exposing a WSDL from it.
